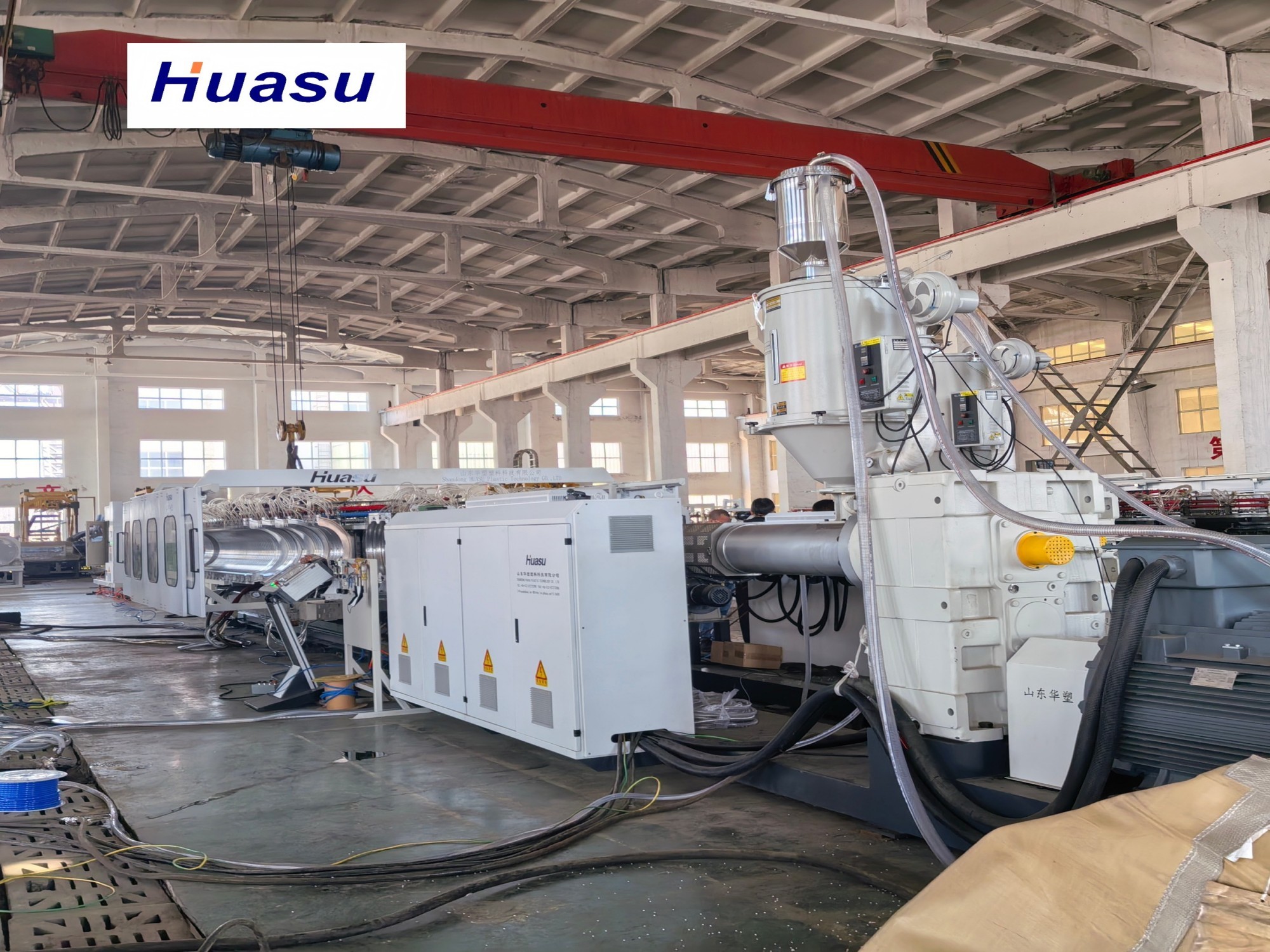

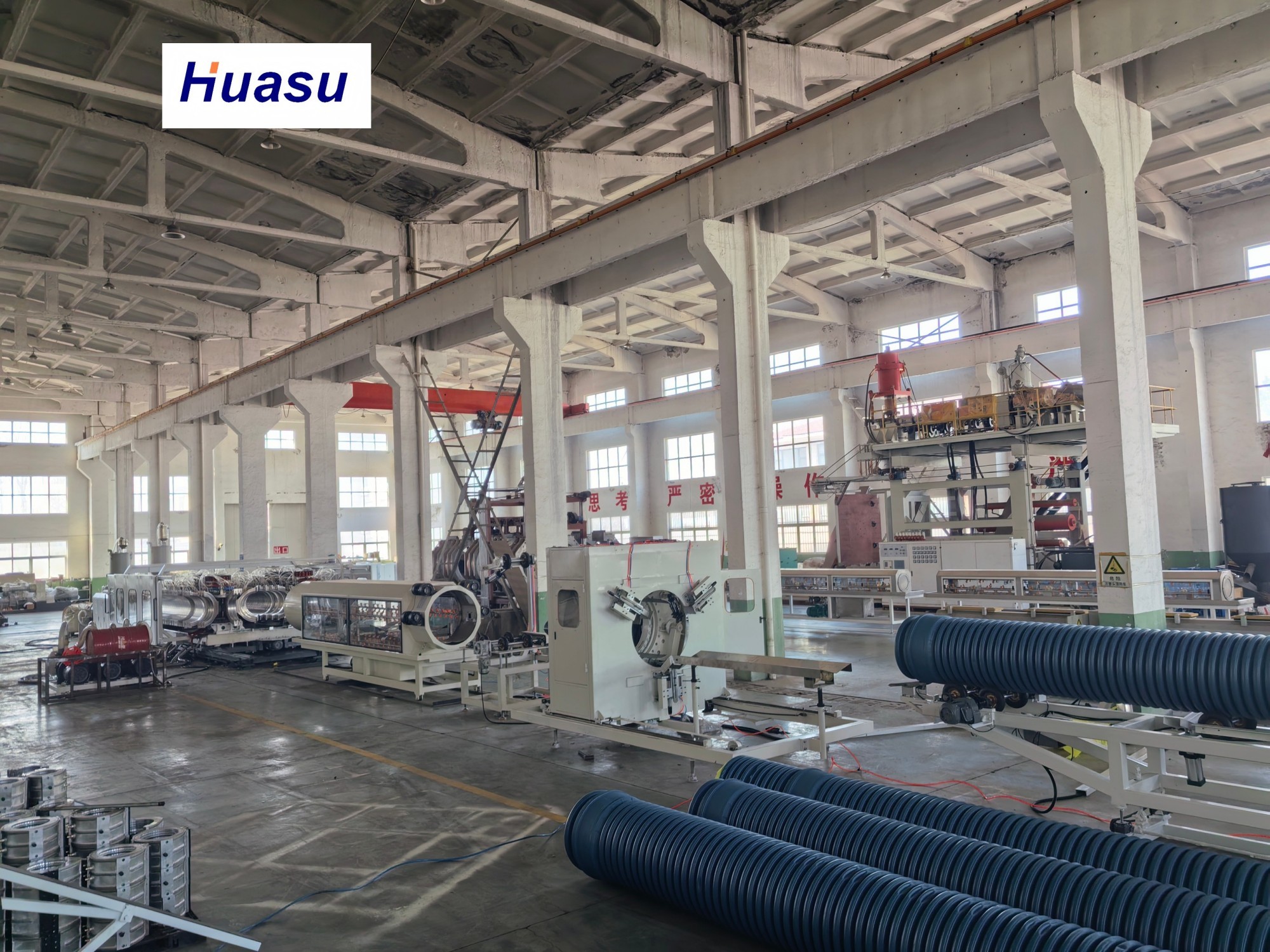

PE / PP / PVC Corrugated Drainage Pipe Machine / Extrusion Line

PE/PP/PVC Corrugated Drainage Pipe Machine/Extrusion Line

Product Description:

The corrugated pipe line is the 3rd generation of the improved product of Shandong HUASU. This advanced system has significantly increased the output of the extruder and the production speed of the pipe by 20-40% when compared to its predecessor.

In addition, this system offers the capability of achieving online belling to ensure the performance of the formed corrugated pipe products. The incorporation of this feature enhances the overall quality and efficiency of the production process.

Moreover, the corrugated pipe line also adopts the Siemens PLC system, further enhancing its operational capabilities and providing reliable performance for consistent and efficient production.

Features:

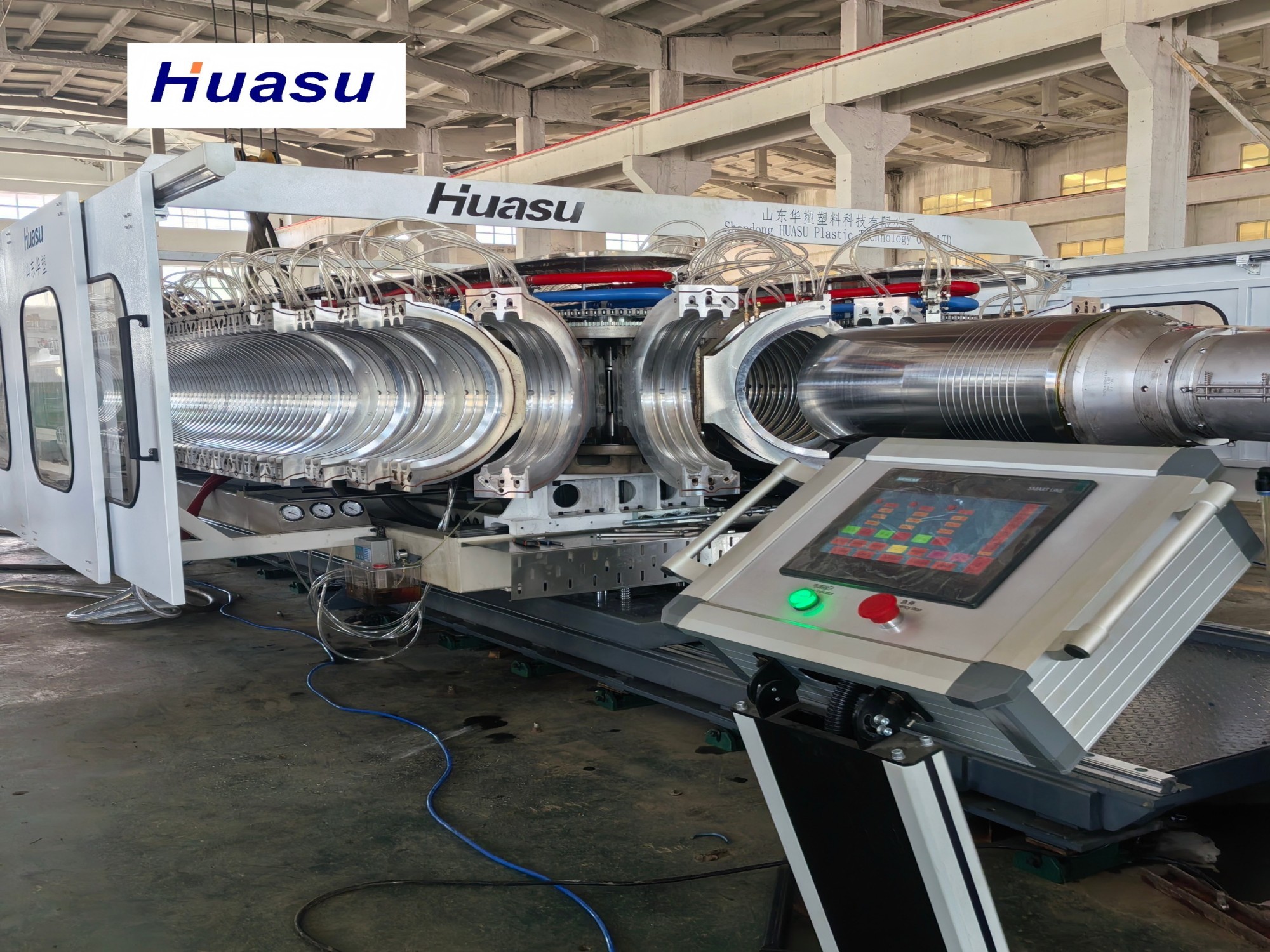

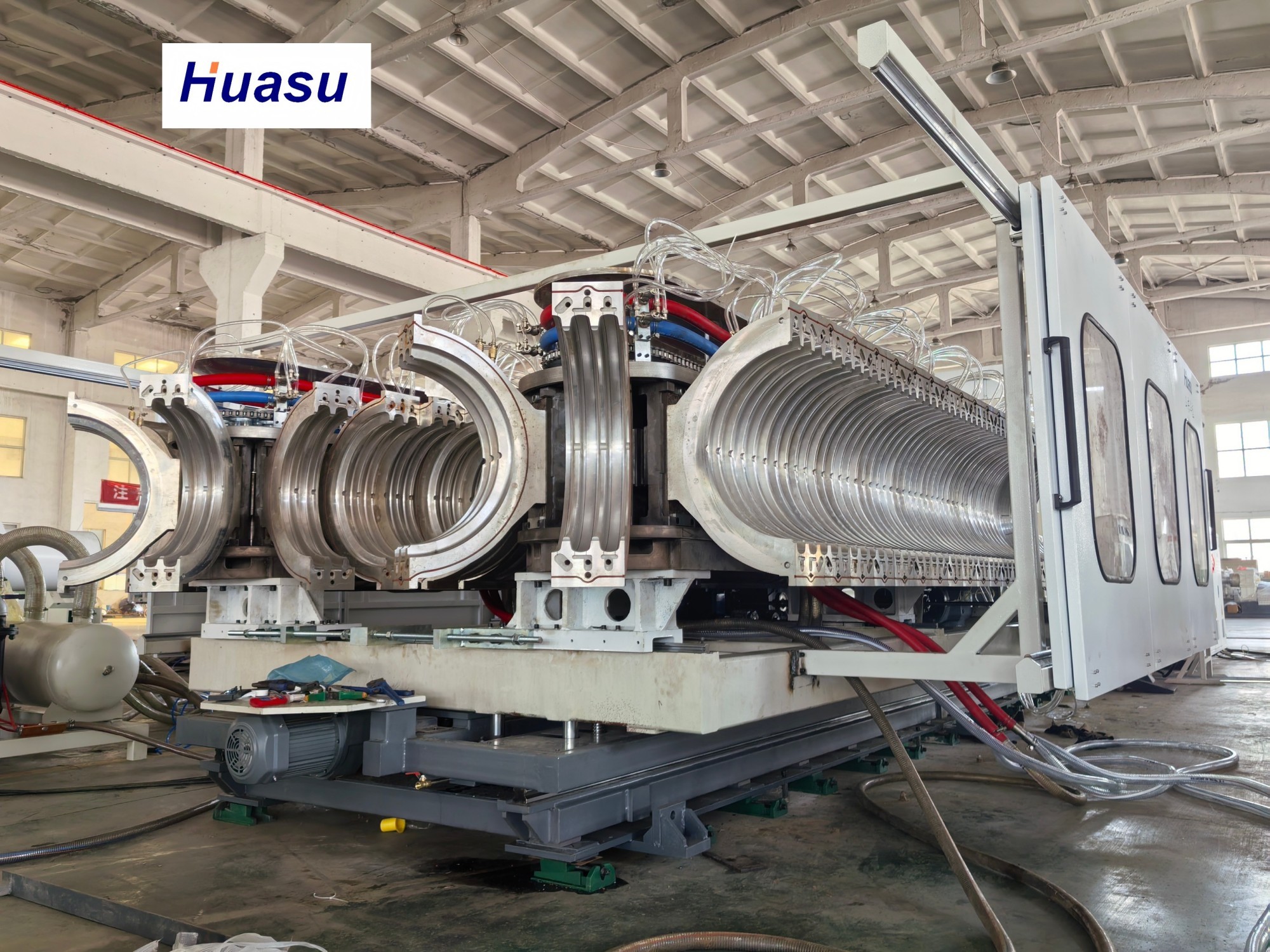

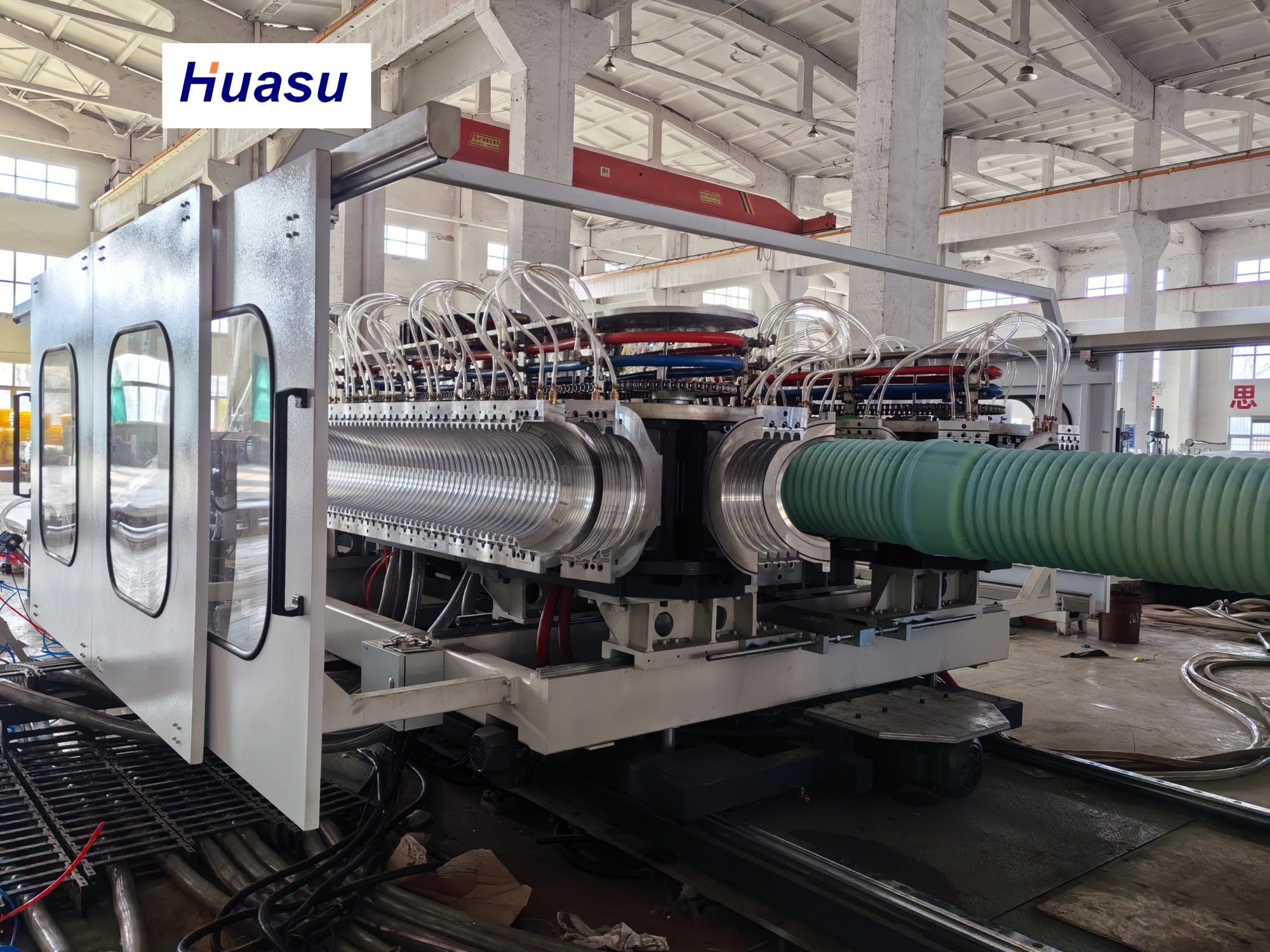

The newly designed closed molding machine features a special high-efficiency cooling system tailored for the production of aluminum modules. This innovation significantly enhances the cooling efficiency for corrugated pipe products.

Accompanying the high-speed, high-output single-screw extrusion machine is a professionally designed extrusion mold for corrugated pipes, ensuring large-scale stable extrusion.

The module offers exceptional interchangeability. Constructed with LY12 high-quality alloy aviation aluminum material containing a copper content of at least 5%, the aluminum forming module is created through a precision pressure casting process with high-density material. This results in material free of light pores and resistant to deformation during long-term use. Moreover, various module waveform schemes can be customized according to user requirements.

Complementing these features is the automatic DWC cutter, equipped with computer control for precise cutting positions, stable operation, and user-friendly functions.

Technical Parameters:

Applications:

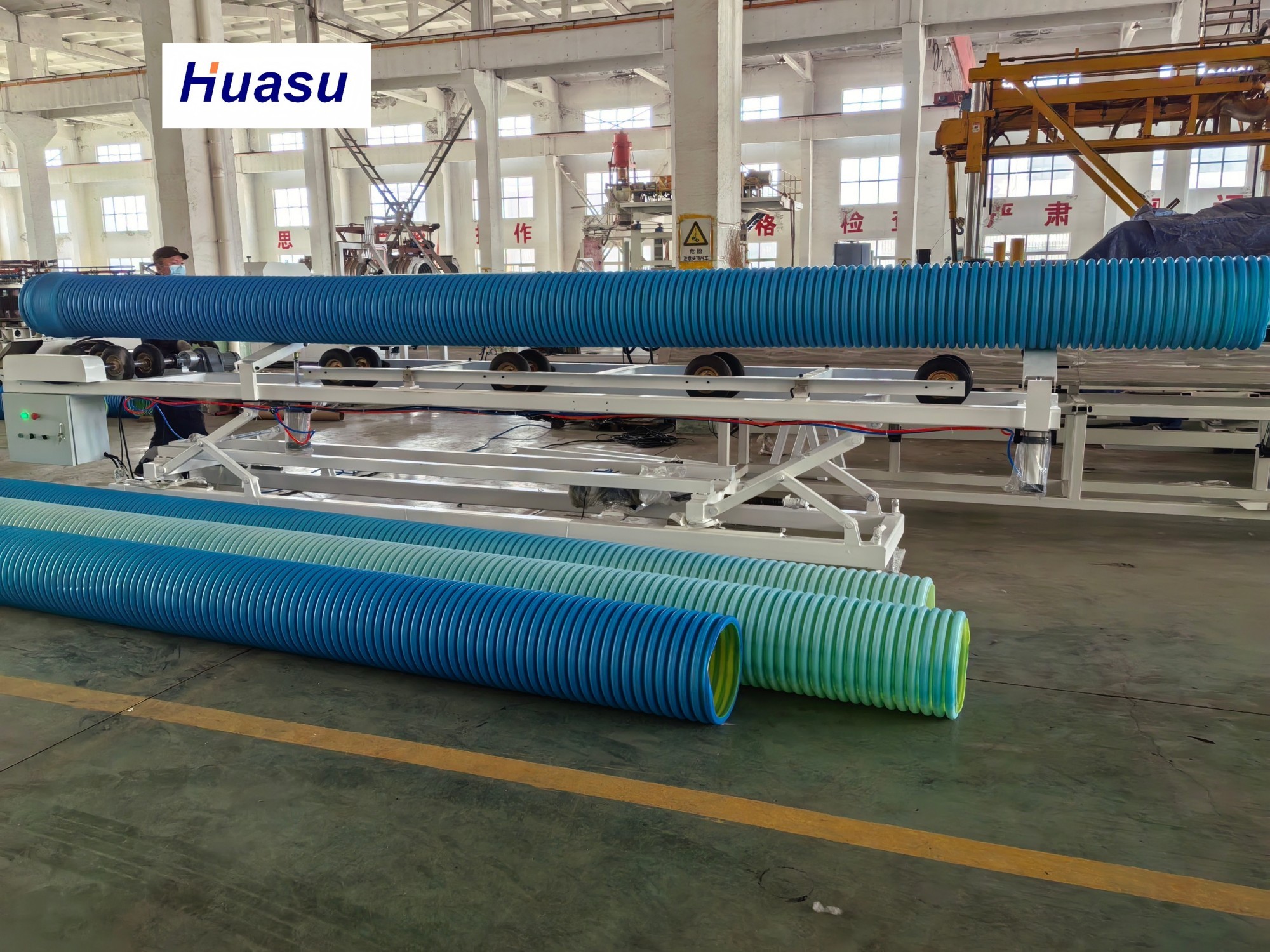

Corrugated pipe extrusion machine manufacturers are capable of producing corrugated pipes ranging from 32mm to 1600mm in outer diameter/inner diameter. These corrugated pipes find widespread applications such as cable protection covers and small-size corrugated pipes for medical transfer, as well as in gas and water transfer for larger corrugated pipes.
