Plastic Flexible Corrugated Pipe Extrusion Production Line / Making Machine

Plastic Flexible Corrugated Pipe Extrusion Production Line / Making Machine

Product Description:

The corrugated pipe line is the 3rd generation of the improved product of Shandong HUASU. The output of the extruder and the production speed of the pipe are greatly increased by 20-40% compared with the previous product.

Online belling can be achieved to ensure the performance of the formed corrugated pipe products. Adopts Siemens PLC system.

Features:

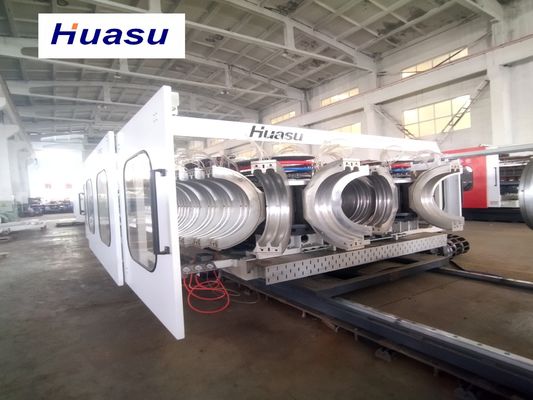

The closed molding machine that has been newly designed features a special high-efficiency cooling system tailored for shaping aluminum modules. This innovation significantly enhances the cooling efficiency during the manufacturing process of corrugated pipe products.

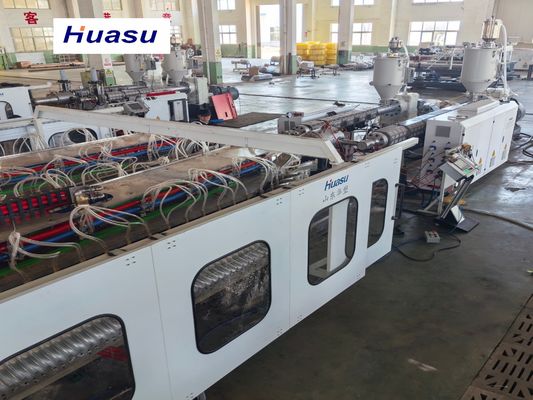

Accompanied by a high-speed, high-output single-screw extrusion machine, there is a professionally designed extrusion mould for corrugated pipes that enables large-scale and steady extrusion.

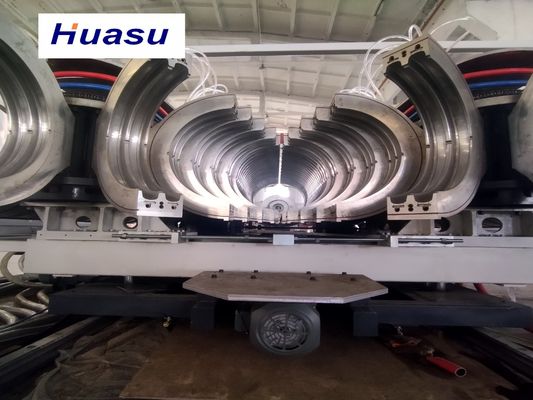

The module possesses excellent interchangeability. The aluminum forming module is crafted using LY12 high-quality alloy aviation aluminum material with a copper content of 5% or more. It is manufactured using a precision pressure casting process, resulting in high density material free from light pores. This makes it resistant to deformation over extended periods of use. Additionally, various waveform schemes for modules can be customized based on user requirements.

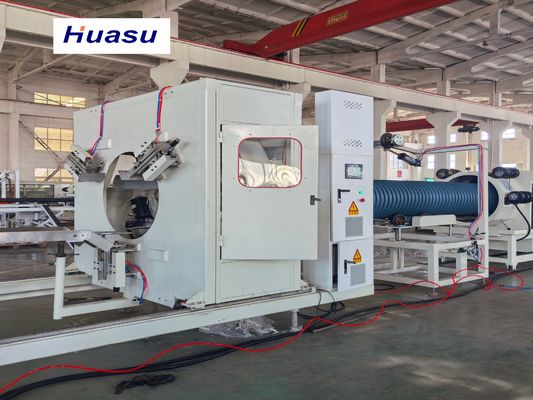

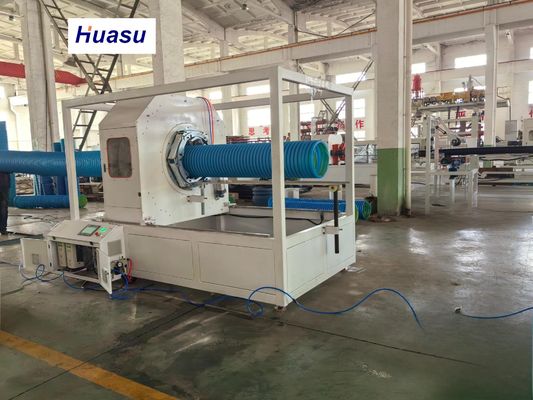

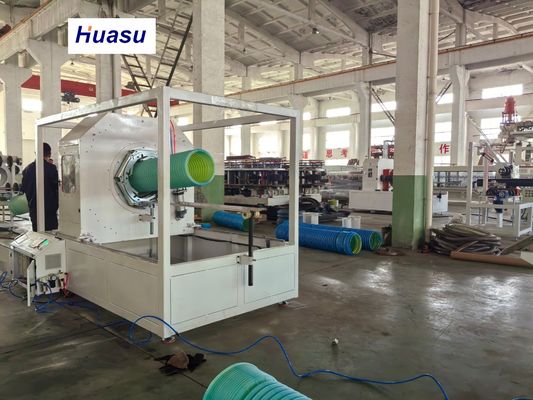

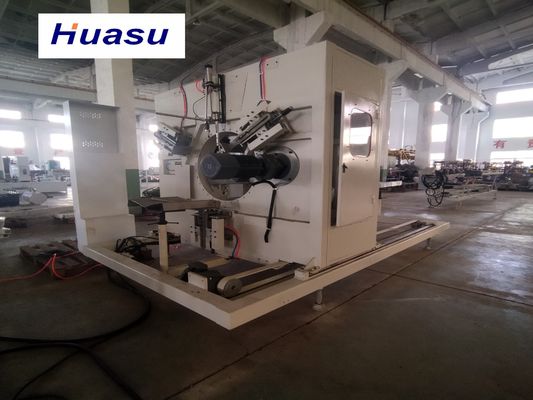

Completing the system is an automatic DWC cutter that is computer-controlled, ensuring accurate cutting positions, stable operation, and ease of use.

Technical Parameters:

Applications:

The Corrugated Pipe Extrusion Machine is capable of manufacturing corrugated pipes with outer diameters ranging from 32mm to 1600mm OD/ID. These corrugated pipes have a variety of applications, such as serving as cable protection covers and medical transfer pipes for small sizes. Additionally, they are extensively used for gas and water transfers in larger sizes.
