Automatic Single Wall Corrugated Pipe Extrusion Line with 38CrMoAlA Barrel Material for 75-250mm Pipes at 15m/min Output Speed

  • Automatic Single Wall Corrugated Pipe Extrusion Line with 38CrMoAlA Barrel Material for 75-250mm Pipes at 15m/min Output Speed
  • Automatic Single Wall Corrugated Pipe Extrusion Line with 38CrMoAlA Barrel Material for 75-250mm Pipes at 15m/min Output Speed
  • Automatic Single Wall Corrugated Pipe Extrusion Line with 38CrMoAlA Barrel Material for 75-250mm Pipes at 15m/min Output Speed
  • Automatic Single Wall Corrugated Pipe Extrusion Line with 38CrMoAlA Barrel Material for 75-250mm Pipes at 15m/min Output Speed
  • Automatic Single Wall Corrugated Pipe Extrusion Line with 38CrMoAlA Barrel Material for 75-250mm Pipes at 15m/min Output Speed
  • Automatic Single Wall Corrugated Pipe Extrusion Line with 38CrMoAlA Barrel Material for 75-250mm Pipes at 15m/min Output Speed
  • Automatic Single Wall Corrugated Pipe Extrusion Line with 38CrMoAlA Barrel Material for 75-250mm Pipes at 15m/min Output Speed
  • Automatic Single Wall Corrugated Pipe Extrusion Line with 38CrMoAlA Barrel Material for 75-250mm Pipes at 15m/min Output Speed
نام تجاری Huasu

برای نمونه ها و کوپن های رایگان با من تماس بگیرید.

واتساپ:0086 18588475571

وی چت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.

x
جزئیات محصول
خط لوله راه راه خودکار مواد 38crmoala
ولتاژ اکسترودر لوله راه راه 220-440 ولت سیستم نامزدی اتمام کامل
مشخصات 75-250 میلی متر Max. حداکثر Output Speed سرعت خروجی 15 متر در دقیقه
رله امرون اینور زیمنس
برجسته کردن

38CrMoAlA Barrel Material Single Wall Corrugated Pipe Extrusion Line,75-250mm Specification Corrugated Pipe Extrusion Line,15m/min Max Output Speed HDPE Pipe Extrusion Line

,

75-250mm Specification Corrugated Pipe Extrusion Line

,

15m/min Max Output Speed HDPE Pipe Extrusion Line
پیام بگذارید
توضیحات محصول

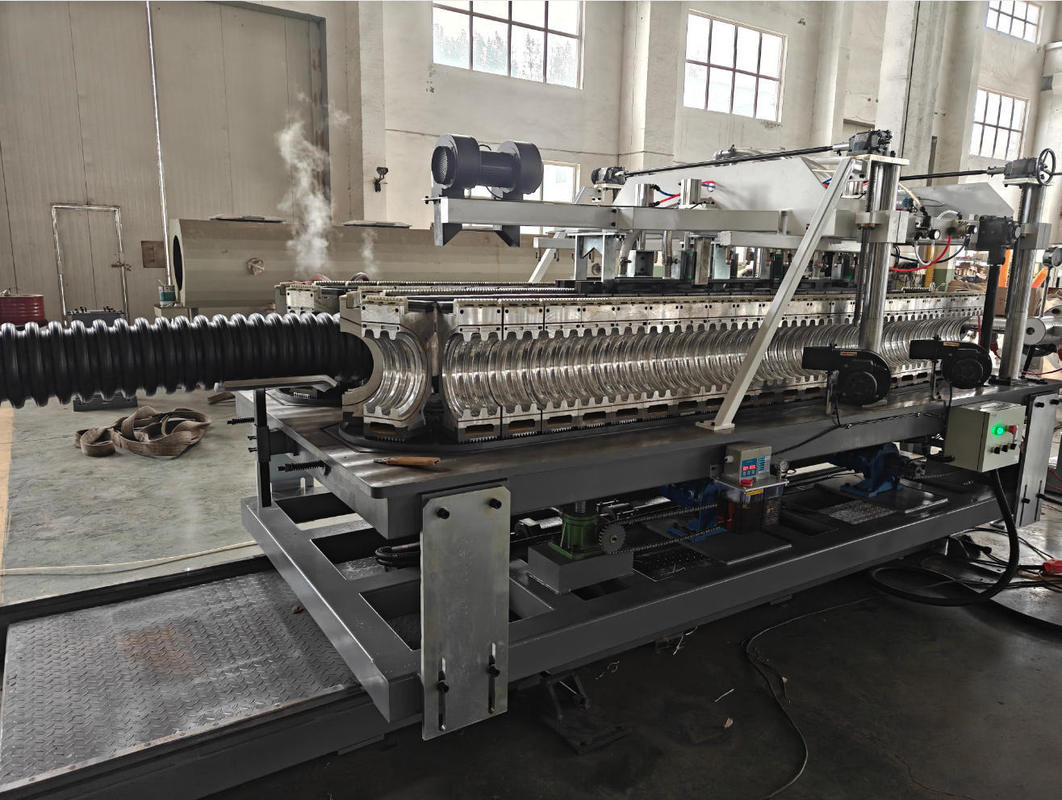

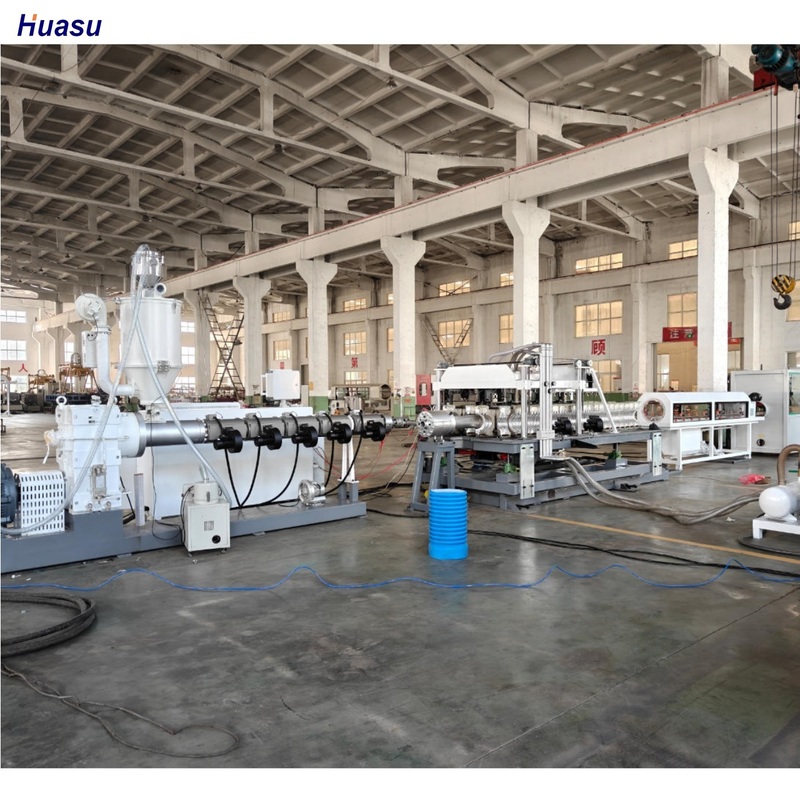

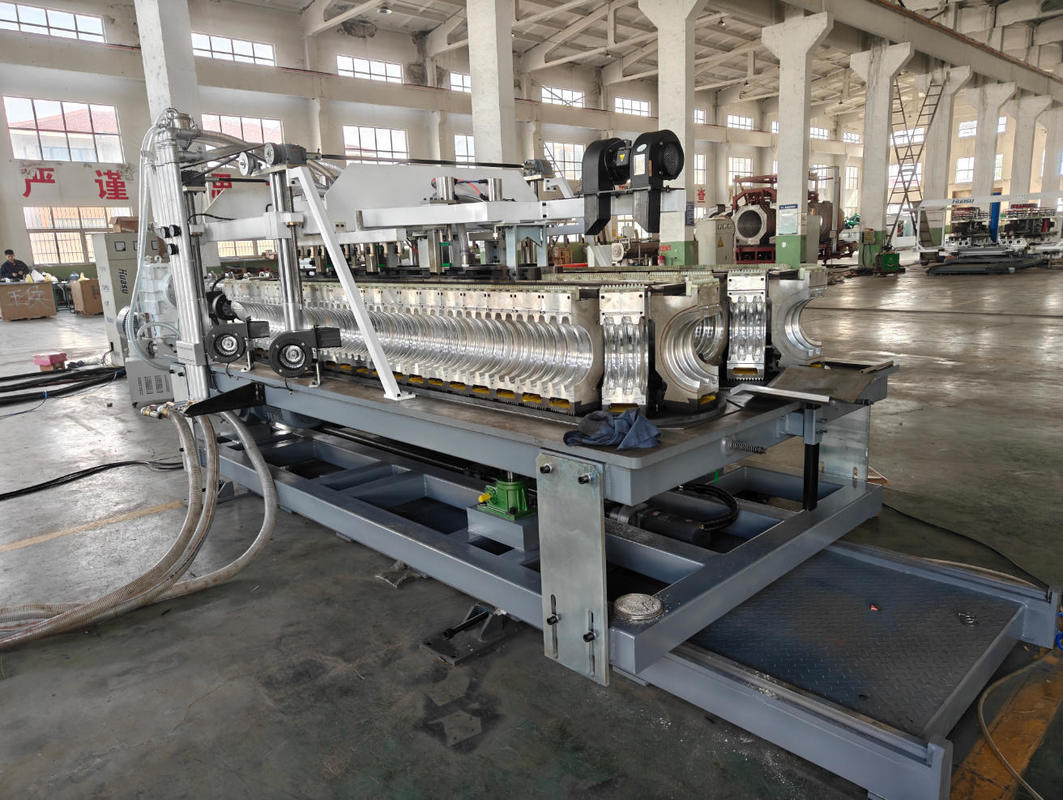

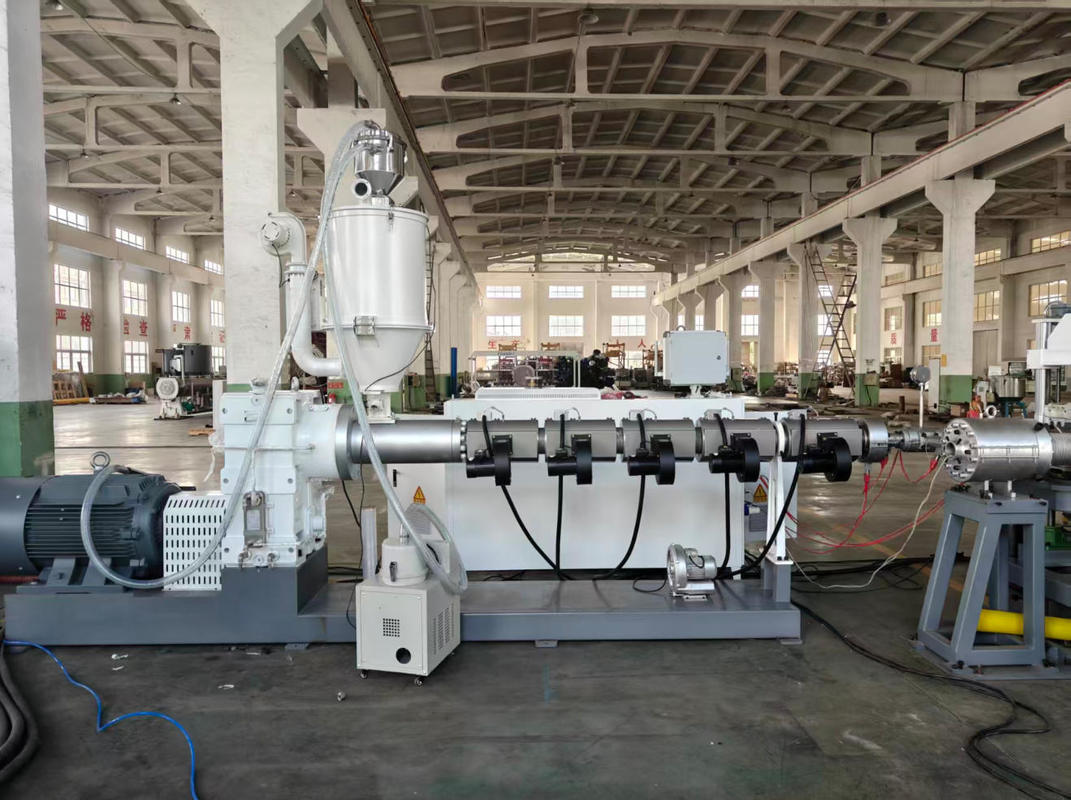

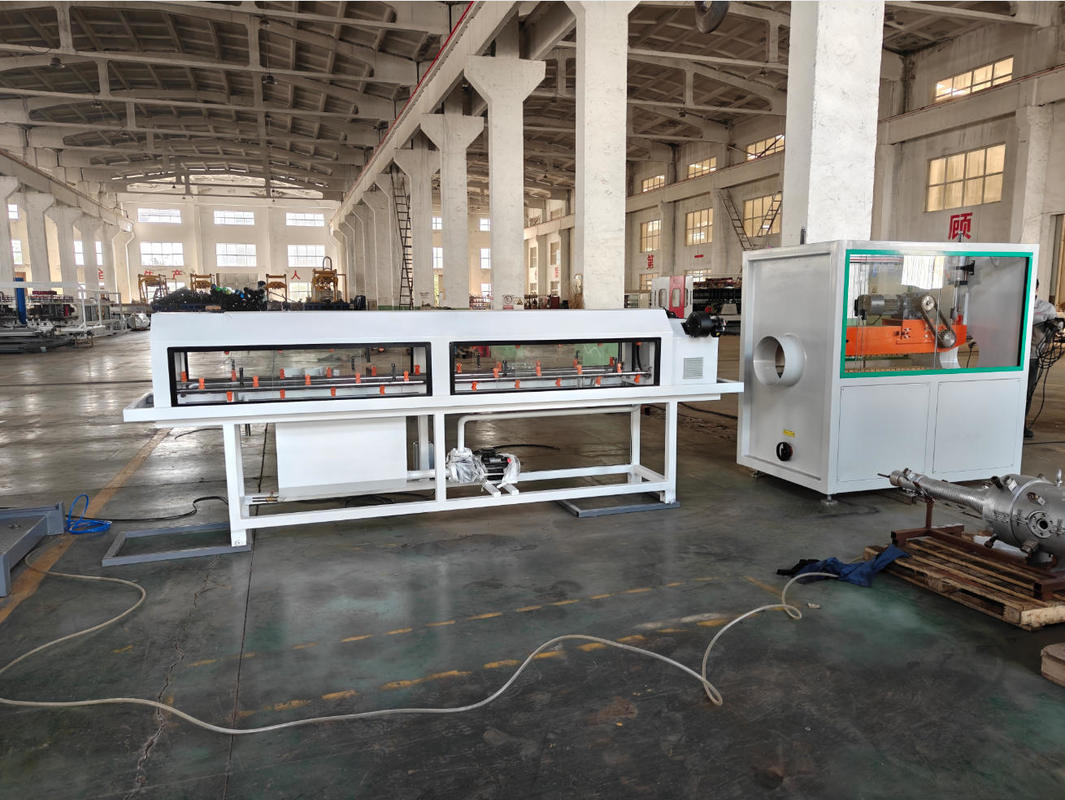

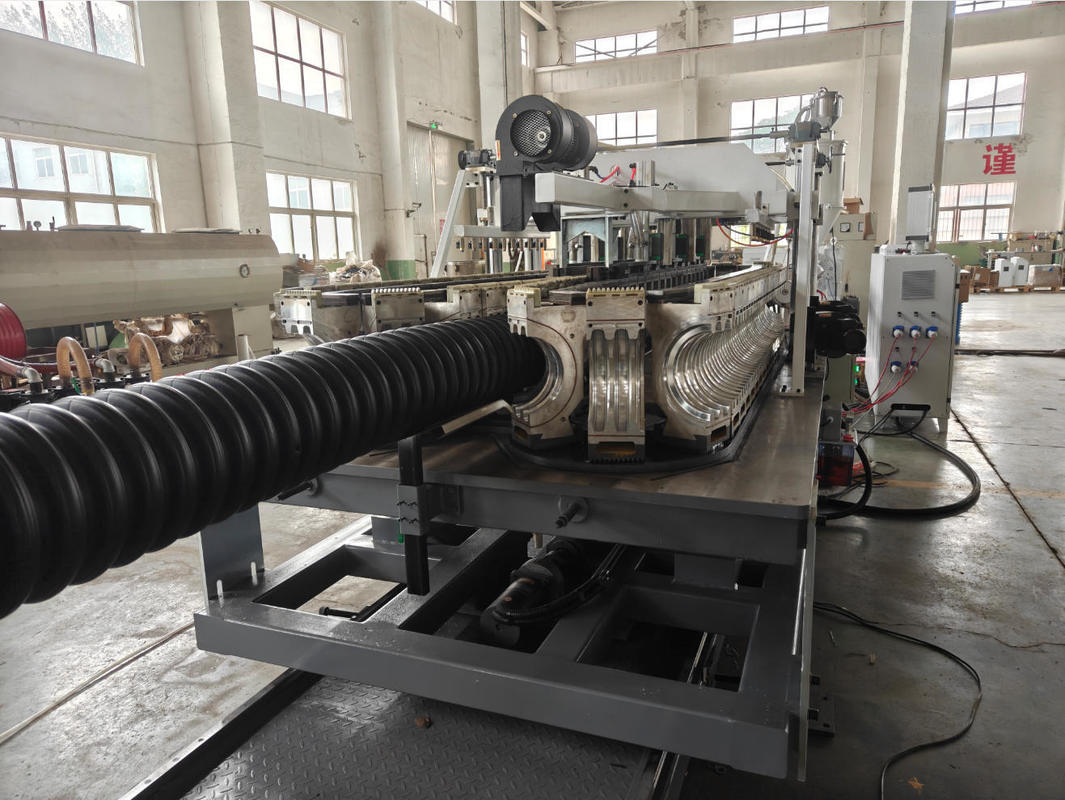

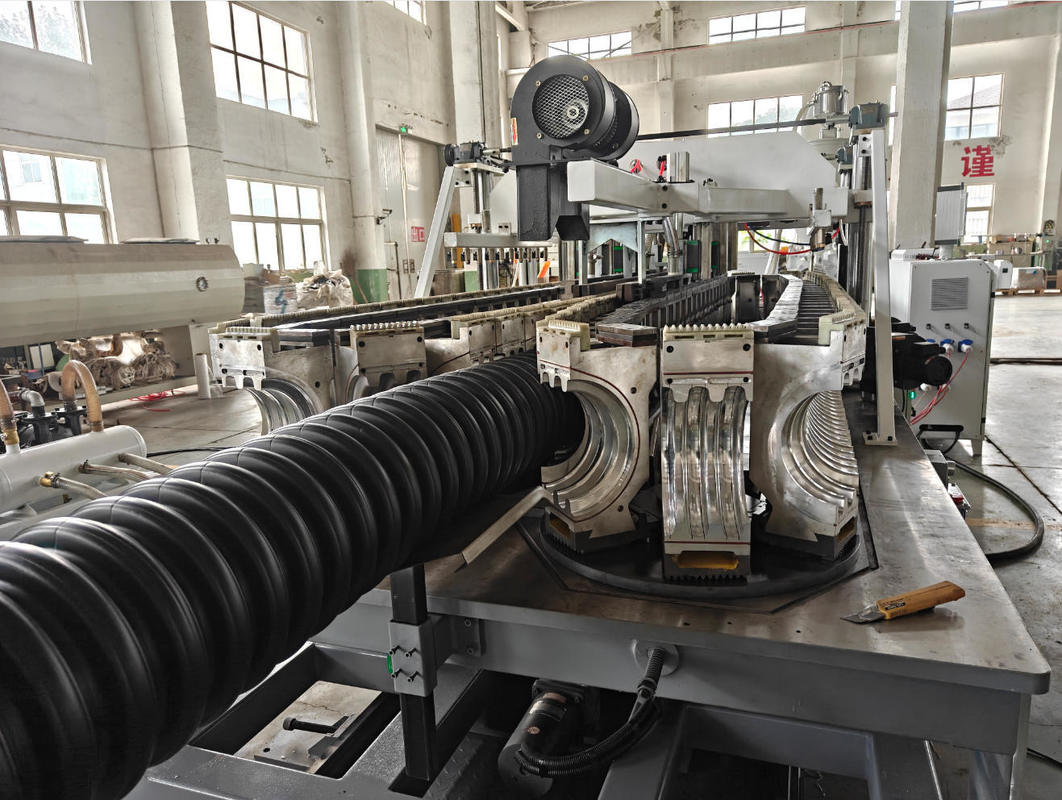

Automatic Single Wall Corrugated Pipe Extrusion Line with Omron Relay and 38CrMoAlA Barrel Material
Product Overview

This HDPE Pipe Extrusion Line provides a complete solution for manufacturing single wall corrugated pipes ranging from 75mm to 250mm in diameter. Designed for precision and efficiency, this advanced extrusion system incorporates premium components and automated features to ensure consistent, high-quality output.

Key Features
  • Full intermeshing engagement system for uniform corrugation and dimensional accuracy
  • Siemens inverter for precise speed control and reliable operation
  • Automatic corrugation system reduces manual intervention and improves productivity
  • Omron relay system ensures electrical safety and stable performance
  • 38CrMoAlA barrel material provides exceptional durability and longevity
Technical Specifications
Parameter Specification
Maximum Output Speed 15m/min
Pipe Diameter Range 75-250mm
Control System Omron Relay
Engagement System Full Intermeshing
Corrugation Process Automatic
Inverter Siemens
Barrel Material 38CrMoAlA
Operating Voltage 220-440V
Applications

This automatic corrugated pipe extrusion line is ideal for various industrial applications including:

  • Drainage systems and water management infrastructure
  • Cable protection and conduit applications
  • Agricultural irrigation systems
  • Construction and civil engineering projects
  • Telecommunications infrastructure

The automated operation ensures consistent quality while minimizing labor requirements, making it an efficient solution for high-volume production environments.
